Dragon 32 Soak Test

From The Dragon Archive
Jump to: navigation, search

A cartridge designed to test the Dragon 32 hardware in a loop.

The ROM program will change a pattern on screen and lit a green led on the cartridge if tests are passing, and freeze the machine and lit a red led if any test fails.

The cartridge will not work on a Dragon 64 or a Dragon 200 as it performs a ROM checksum and later models will make the checksum test fail.

Pictures

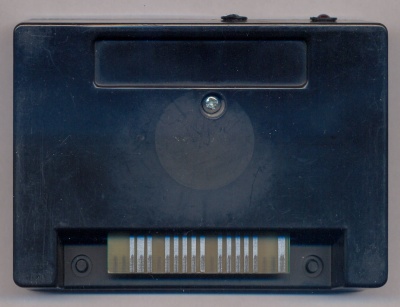

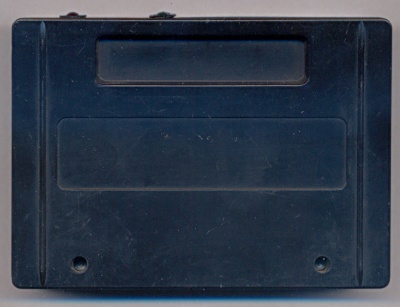

Dragon32 SoakTest Top.jpgDragon32 SoakTest Bottom.jpg

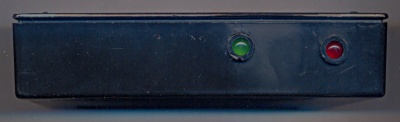

Dragon32 SoakTest Front.jpg

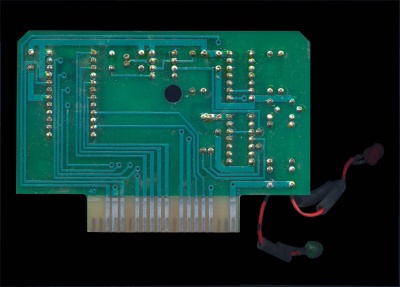

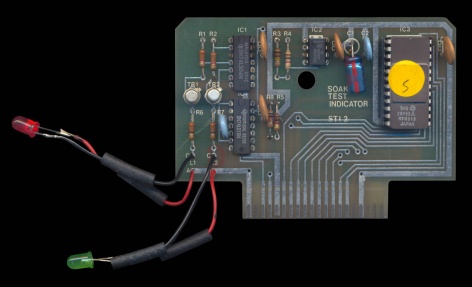

Dragon32 SoakTest PCB Top.jpgDragon32 SoakTest PCB Bottom.jpg

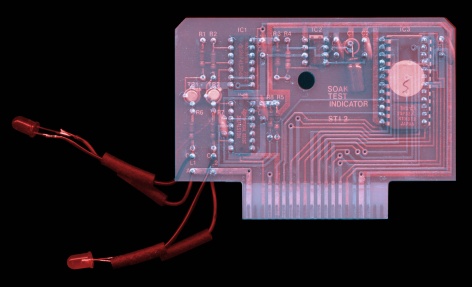

Dragon32 SoakTest PCB Composite.jpg

Downloads
