Dragon 200E Lower Case Daughterboard ROM question

[dublevay]

OK - I am working on something.

[dublevay]

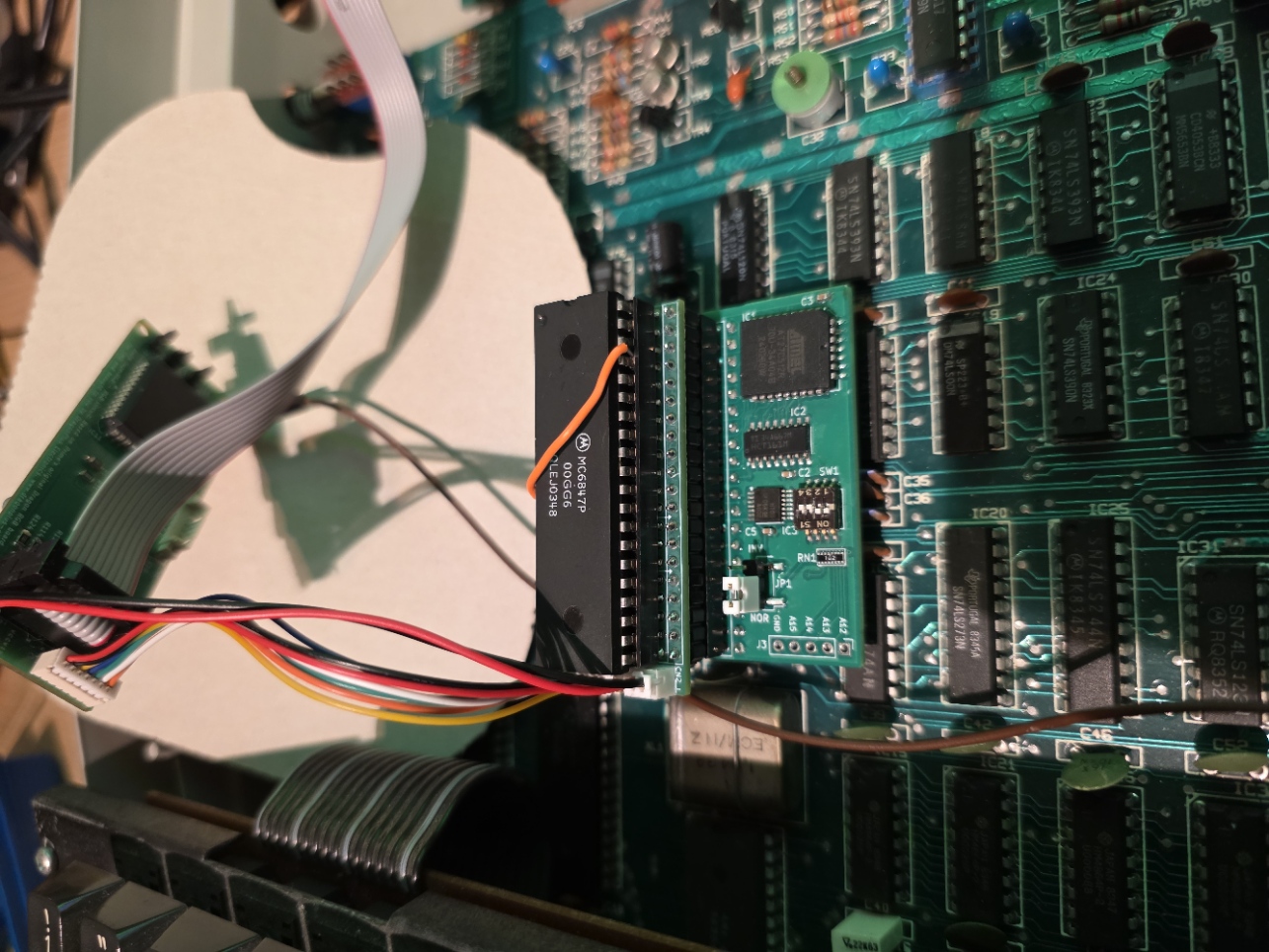

A possible new version of the lower case board. Minimised probably as much as I can - now down to 50.08 x 55.37mm.


[dublevay]

Candidate 2. 58.34mm x 38.74mm.


If I go ahead with these, they will be pre-assembled - apart from any headers and the DIP socket.

[robcfg]

Looks really nice!

[dublevay]

I went further, and SMD'd nearly everything!


[robcfg]

I've been wondering if there's a way to select the banks and the inverted colour using one of the unused I/O addresses instead of doing it with switches and jumpers.
